Double Sphere Rubber Expansion Joint
150LB, PN16, JIS10K
1-1/2”~24” (40~600mm)
Synthetic Rubber
get a quote
Double Sphere Rubber Expansion Joint Product Information
Double sphere rubber expansion joint is also known as shock absorber, pipe shock absorber, shock proof box and soft joint. It is a pipe joint of high-flexibility, high-gas tightness, resistance to medium and climate. Rubber expansion joints has five types: single sphere rubber expansion joints, double sphere rubber expansion joints, threaded rubber expansion joints, reduced rubber expansion joints and rubber bending joint. There are two kinds of connections: flange and threaded. The rubber expansion joints is widely used in water supply and drainage, recycled water, air conditioning and heating, fire control, shipping, water pump, and compressor, Etc. Flowspec Luokai can manufacture and supply the double sphere rubber expansion joint according to standard of ANSI, JIS, DIN, BS with sizes of 1-1/2”~24” (DN40~DN600mm). Welcome to contact us for detailed information and best quotes if you have any questions or inquiries.
1. FEATURES
- Reduce pipeline system vibration and noise
- Good sealing, light weight, easy installation, long service life

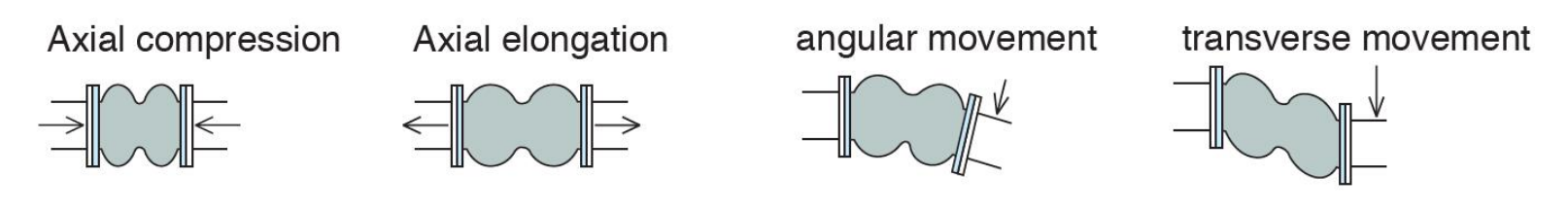

- Solve the problem of axial movement, transverse movement, angular movement
- Acid resistance, alkali resistance, corrosive resistance, oil resistance, heat resistance
- If use on overhead, can match with elastic support to tighten up
- If pipeline pressure is high, use bolt connect the flange both ends
3. STANDARDS
- Design & manufacturing: ANSI, JIS, DIN, BS
- Face to face: manufacturer’s
- Flanged ends: ANSI, JIS, DIN, BS, EN1092
- Inspection & testing: manufacturer’s
2. TECHNICAL SPECIFICATIONS
- PN10 / PN16 / 150LB / JIS10K
- Size: 1-1/2”~24” (DN40~DN600mm)
- Materials: NR, CR, NBR, EPDM, IIR, FKM
- Applicable medium: water, sea water, sewage, petroleum, acid, alkali
- Applicable temperature: -15℃~+115℃ (higher temperature is available upon request)
4. APPLICATIONS
- Water supply and drainage
- Recycled water system
- Air conditioning and heating
- Fire fighting
- Shipping
- Pump station
- Compressor system
- Steel works

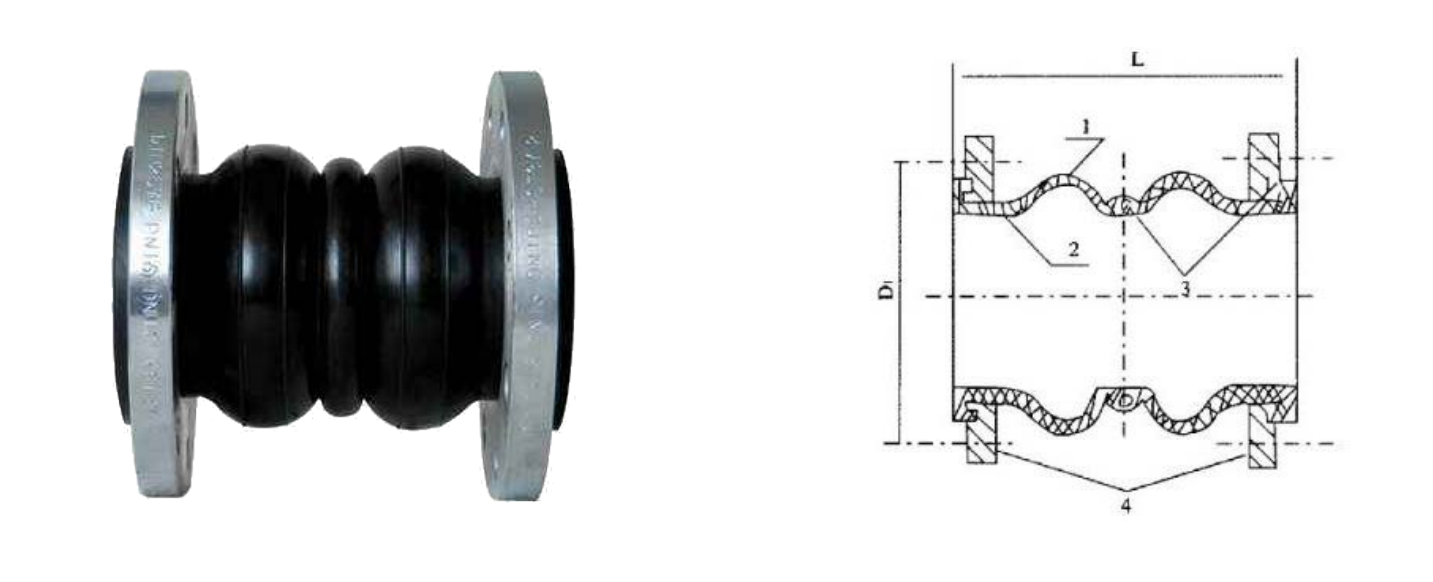

PARTS AND MATERIALS
| NO. | PARTS | MATERIALS |
|---|---|---|
| 1 | Inner Rubber | NR, CR, NBR, EPDM, IIR, FKM |
| 2 | Outer Rubber | NR, CR, NBR, EPDM, IIR, FKM |
| 3 | Reinforcing Ring | Carbon Steel |
| 4 | Flange | Mild Steel, Ductile Iron, S.S.304, S.S.316 |
| 5 | Flange Dimensions | PN10 / PN16 / ANSI 150LB / JIS10K |
MAIN CONNECTION DIMENSIONS
| Nominal Dia. | Dimension (mm) | |||||
|---|---|---|---|---|---|---|
| mm | inch | L | Axial Elongation | Axial Compression | Transverse | Angular |
| Movement | Movement | |||||
| 40 | 1.5 | 165 | 10 | 20 | 20 | 30 |
| 50 | 2 | 165 | 10 | 20 | 20 | 30 |
| 65 | 2.5 | 175 | 10 | 20 | 20 | 30 |
| 80 | 3 | 175 | 10 | 20 | 20 | 30 |
| 100 | 4 | 225 | 15 | 30 | 25 | 30 |
| 125 | 5 | 225 | 15 | 30 | 25 | 30 |
| 150 | 6 | 225 | 15 | 30 | 25 | 30 |
| 200 | 8 | 325 | 20 | 40 | 30 | 30 |
| 250 | 10 | 325 | 20 | 40 | 30 | 30 |
| 300 | 12 | 325 | 20 | 40 | 30 | 30 |
| 350 | 14 | 325 | 20 | 40 | 30 | 30 |
| 400 | 16 | 340-400 | 20 | 40 | 30 | 30 |
| 450 | 18 | 340-400 | 25 | 45 | 30 | 30 |
| 500 | 20 | 340-400 | 25 | 45 | 30 | 30 |
| 600 | 24 | 340-400 | 25 | 45 | 30 | 30 |
